Electric Sliding Gate Kit - NICE RB400

For Swing and Sliding Gates:

Width: Measured pillar to pillar or post to post. If there are no pillars or posts, the total width of the opening minus 360mm (180mm post on each side) need to be the size you need to enter to get the price. The Aluminium posts of 180mm x 180mm matching the height of the chosen gate is needed for double leaf swing and sliding gates. Aluminium posts are built to be cemented to the ground. We will add the extra length that goes under the ground. Our 180mm square aluminium posts are of premium quality made with 4.5mm thick Aluminium profiles offering stability and support for the gates and automation.

Height : Actual measurement of the gate from ground to the top most point of the gate. This can be along the hinge side for straight and curved down gates but along the centre for curved up gates. For straight top gates please measure along hinge side from ground to the just under the pillar cap (if any). It is recommended to leave a minimum gap of 100mm between top of the gates and the top of the pillar at hinge side. This is to allow room for hinges and cover.

Swing and sliding driveway gates can be installed on brick pillars or 180mm square aluminium posts. Aluminium posts from SLAB are highly durable made of 4.5mm thick Aluminium profile, We add 40cm to length of each posts so your installers have enough to bury them underground.

In case you are using brick piers then we would advice reinforcing the brick pillars by adding concrete to the centre.

Aluminium posts are powder coated in matching RAL colours and comes with slightly domed post caps . Wooden sublimation is not possible with Aluminium posts.

Video intercoms are a recommended additions to your electric gates. It is just like keeping the door bell at the gates.You can see and answer the visitor as well as unlock the gates for them. Keypad at the gates allows PIN entry for regular visitors like milkman or gardener. If you have a pedestrian gate with electric latch close to the electric driveway gate, both the gates can be controlled using the same intercom system.

We install Hikvision video door entry system with keypad to control your automated gates .  This includes the outdoor video calling unit with keypad and 1 indoor 7 inch answering touchscreen

Model : DS-KIS602

The video door entry system from Hikvision enables you to see, talk and answer your door bell via the supplied touchscreen or mobile App provided you have brodband network up and running.

The fisheye camera on the outdoor station can provide a 180-degree wide-angle and 2MP high-definition image, and the technologies of WDR and Night Vision can help the indoor station present an excellent image quality with rich details.

Our installers can set the intercom to release your gate and receive notifications on your mobile App.

Yes, if you would like to unlock your pedestrian gate from touchscreen or keypad.

Electric latches, also known as electric strikes, are devices used to secure your pedestrian gates. They are in addition to the traditional lock and key mechanisms to control access electronically. An electric strike latch consists of two main components: the strike plate and the locking mechanism. The strike plate is installed on the post while the locking mechanism is installed on the gate itself.

We are authorised dealers of automation kits from NICE and KEY AUTOMATION .  Below are the specification of the kits. Installation of electric motor to gates require skill and knowledge of the electric motor being used. If choosing local electric gate installers and not registered SLAB gate installers please make sure they have relevant experince working with these brands.

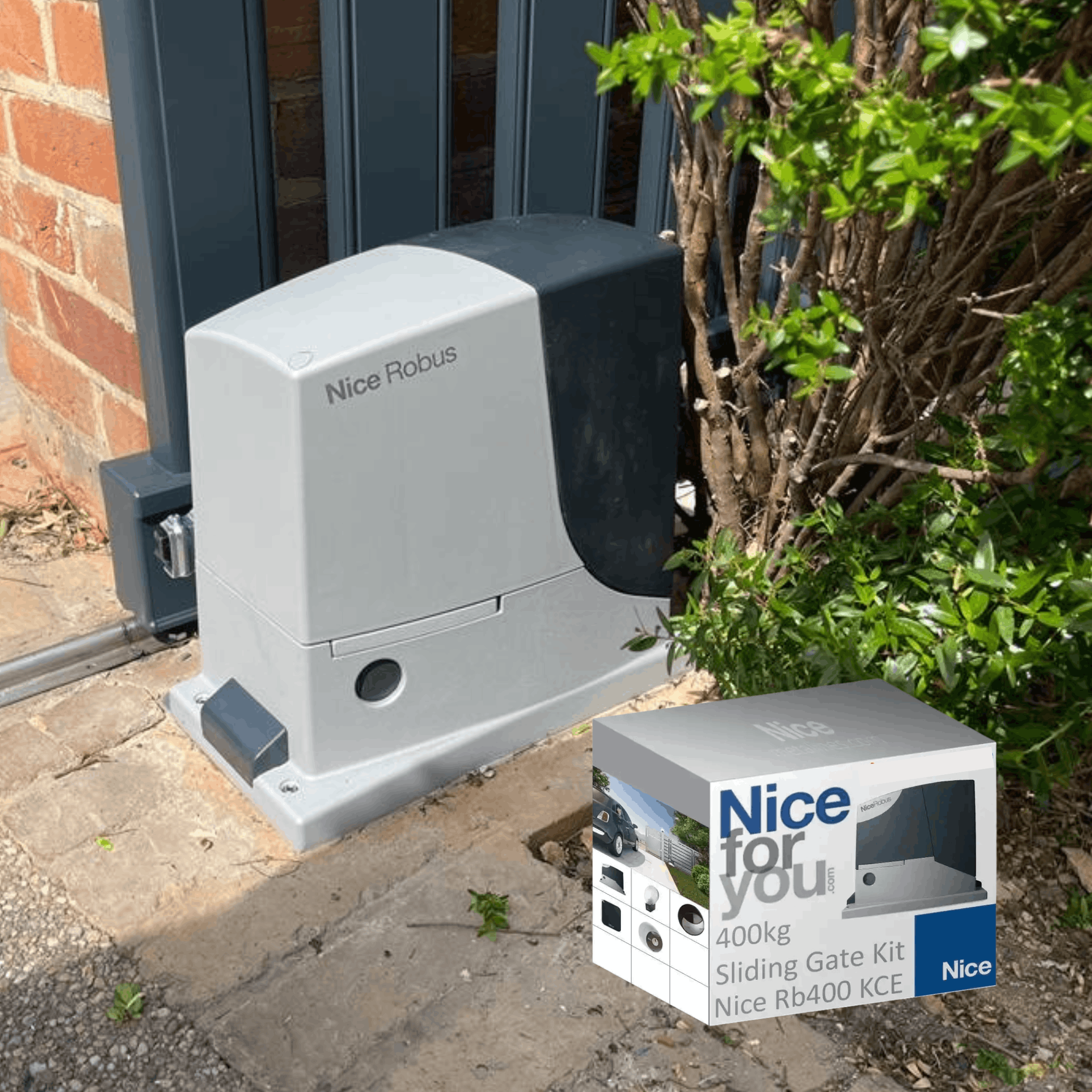

• Sliding Gate Motor Kit from NICE

  Model : RB400 | GBP 1176



  Kit for sliding gates up to 400 kg, 24 Vdc motor, control unit 11A

  Opening & Closing Speed : 34cm/sec

  Whats included :
  1 x Sliding Gate Motor
  11A Control Panel
  2 x Remote Controls
  Pair of Safety Sensors

  Dimensions



• Sliding Gate Motor Kit from Key Automation

  Model : KSUN4024KK | GBP 660



  Kit for sliding gates up to 400 kg, 24 Vdc motor, control unit 14A

  Opening & Closing Speed : 26cm/sec

  Whats included :
  1 x Sliding Gate Motor
  14A Control Panel
  2 x Remote Controls
  Pair of Safety Sensors

  Dimensions



Automation kits might be delivered seperate as they come from different suppliers

We are authorised dealers of automation kits from NICE and KEY AUTOMATION .  Below are the specification of the kits. Installation of electric motor to gates require skill and knowledge of the electric motor being used. If choosing local electric gate installers and not registered SLAB gate installers please make sure they have relevant experince working with these brands.

• Overground Swing Gate Motor Kit from NICE

  Model : TOONA4006 | GBP 1200



  30V double leaf swing gate kit for gates up to 3m per leaf

  Whats included :
  2 x TO4006 Motors
  1 x MC800 Control Panel
  2 x Remote Controls
  Pair of Safety Sensors
  Manual Release Key

  Dimensions



• Overground Swing Gate Motor Kit from Key Automation

  Model : 900RAY2524E | GBP 780



  For swing gates up to 3 m, connected, 24 Vdc, 14A control unit

  Whats included :
  2 x Overground Swing Gate Motor
  14A Control Panel
  2 x Remote Controls
  Pair of Safety Sensors
  Manual Release Key

  Dimensions



• Underground Swing Gate Motor Kit from NICE

  Model : LFAB4024 | GBP 1400



  24v double leaf underground kit for gates up to 4m per leaf

  Whats included :
  2 x LFABBOX4 Foundation boxes
  2 x LFAB4024 24V Motor
  14A Control Panel
  2 x Remote Controls
  Pair of Safety Sensors
  Manual Release Key

  Dimensions



• Underground Swing Gate Motor Kit from Key Automation

  Model : KSUN4024KK | GBP 996



  Underground kit for swing gates up to 3.5 m, connected, 24 Vdc, 14A control unit

  Whats included :
  2 x Underground Swing Gate Motor
  14A Control Panel
  2 x Remote Controls
  Pair of Safety Sensors
  Manual Release Key

  Dimensions



Automation kits might be delivered seperate as they come from different suppliers

Fitting charges are under the assumption that the ground is ready for our team to start with the ground works. Any tree root or hedging needs to be cleared prior to installation.

If there are old gates to be removed and discarded, we might be able to do so at additional cost, depending on the size and weight of the gates.

If you have additional installation requirement like vehicle e-loop detector or push exit buttons, please contact us to get a custom installation pricing.
