At SLAB our mission is to provide you with the ultimate gate solution that ticks all the boxes - durability, functionality, aesthetics, and ease of use. With our bespoke sliding gate tool we will help you navigate the process of selecting the perfect sliding electric gate for your property. Simply choose the best options and click on Get a Quote button to send us a request. We will work on your request, get the drawings and quote ready for you in 2-3 days time. These are not auto generated quote and we can understand all your bespoke requirements. So, let's dive right in and find the perfect gate to protect and elevate your driveways and garden!
You may choose your sliding gates to be built on roller tracks or free standing with cantilever models. Standard sliding gates comes with track and rollers while the cantilever model are freestanding. If your driveways doesn’t have enough room for the gates to slide in, you may choose the telescopic version with both leaves sliding to same side.
The choice of colours and mechanism which we offer can be personalised using our bespoke service where you can choose many other upgrades.
The sizes which you enter will be used as the total width of the opening, we will adjust the width of the gate if you need Aluminium posts to be included in the quote.
All our gates comes with reinforcement as standard so that you may choose to automate your gate anytime you wish to do so.
Somfy Rolly IO automation is the latest built-in automation available for sliding gates and we offer you 5 year warranty on the motor.
Sliding gates are available in powder coated RAL colour as well as with wooden sublimation, both offering 20 years of guarantee on colour and fabrication.
Manual gates with no automation, comes handle as standard, matching the colour of the gate.
Please use this as a guide and not an instruction manual.
We have described in detail, on how to get the gates installed, but we strongly recommend to appoint a professional gate installer to get the job done in perfection.
Our team of expert gate installers does manual and electric gate installation and automation within 50 mile radius from our office (SL2 3PQ).
If you need to speak with us, don't hesitate to phone us on 0203 372 3321. You can email us at sales@drivewaygate.co.uk should you have any queries
We are looking for skilled gate installers all over the UK. If you are one of them and looking for more work, don't hesitate to phone us on 0203 372 3321. You can email us at sales@drivewaygate.co.uk. We offer trade discounts to registered gate installers. So contact us now!!
The Somfy Rolly IO is integrated into Aluminium posts and is connected to the rack. The motor is completely hidden inside the post and so it adds on to long life and modern finish.
After you place your order you will be sent an order confirmation from ourselves. We will pass the information to our CAD team to draw the gates/fence as ordered with all the measuremetns exactly marked.
This would help you in building the right driveway or pillars needed and be ready before the gates arrive. You may request to make minor changes if needed at this stage, with written consent. Once the drawing is signed off the order is moved to production and no changes would be accepted.
Our products are large can be heavy and difficult to transport. We have our own vans to transport them. In special circumstances when the gates or fence is longer than 5m we hire third party courier to deliver the item. There is an additional cost involved in this.
Once your product is ready for delivery we will CONTACT YOU BY PHONE or EMAIL to arrange a suitable delivery date (they will not just land like a 'normal courier').
When you are contacted you can discuss any delivery requirements (time requests and access restrictions etc). The delivery drivers also endeavour to call you the day before delivery to confirm and also give you an approximate time of delivery.
We do offer gate, motor and intercom installation services in London, Berkshire, Buckinghamshire, Surrey and Hampshire.
You may find more information on our gate installation here.
Please see our full delivery terms and conditions page (link below) for our delivery terms and conditions.
Delivery is to any mainland UK address in our own truck. Unlike a normal 'courier' our Delivery Team will contact you by phone to arrange a suitable delivery date. The day before the delivery where possible the driver will be in touch again to give a better indication on the time of your delivery.
If in the unlikely event there are any damages or shortages to your delivery, please in the first instance call or email us within 48 hours to report this. Please also take photos of the delivery if possible.
For full delivery and returns terms and conditions please click here
We accept payment by most forms of Credit and Debit Card either via our website.
Payment can also be made by Bacs Bank Transfer.
For Sliding Gates:
Width: Total width of the opening. Measured pillar to pillar. If you require Aluminium posts we will add them to the quote, adjusting the width of the gate accordingly.
Height : Actual measurement of the gate from ground to the top most point of the gate. This can be along the hinge side for straight and curved down gates but along the centre for curved up gates. For straight top gates please measure along hinge side from ground to the just under the pillar cap (if any). It is recommended to leave a minimum gap of 100mm between top of the gates and the top of the pillar at hinge side. This is to allow room for hinges and cover.
For Aluminium Posts:
We will add the most appropriate height and thickness for the aluminium posts if required.
Standard width available for painted and wooden finish Aluminium posts is 100mm and 180mm.
RAL 7016 - Anthracite Grey
RAL 5010 - Gentian Blue
RAL 9005 - Jet Black
RAL 1015 - Light Ivory
RAL 6021 - Pale Green

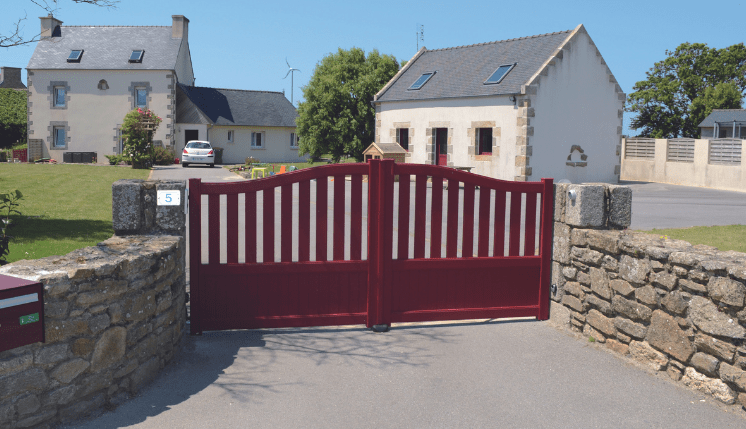

RAL 3004 - Purple Red
YX355S - Rustic Shade
RAL 9016 - Traffic White
RAL 8028 - Terra Brown
RAL 7039 - Quartz Grey
RAL 7045 - Pebble Grey
RAL 9007 - Metallic Grey
RAL 5014 - Dove Blue
All our gates are supplied with NO posts as standard. We assume there are brick pillars to hold the gates in place. The standard size Aluminium posts to hang gates is 100mmx100mm thick. Height would be calculated automatically to match the gates. We allow extra length to cement the posts to the ground. Wooden finish posts would cost 21% more than painted Aluminium posts.
Laser cutting for inbuilt LED lighting and number engraving is possbile only with 180mm posts.
Colour of the posts would be same as the colour of the gates. For wooden finish gates, we choose matching wooden finish posts.
Adding Aluminium posts adds the stability and ease of installation as well as gives your driveway gates the beauty it deserves. You may choose to place the posts between the existing brick pillar or behind them. Either way make sure you measure them right.
Aluminium posts are supplied as pair.
If our standard sizes are not suitable for your project please see your Design Your Own Section or contact us.
Standard sliding gate with single leaf, cantilever and telescopic can be installed using Nice and Somfy Rolly motors. Double leaf sliding gate requires 2 motors, one for each leaf.
ROBUS Kit 400 (RB400KCE) For sliding gates weighing up to 400 kg, Kit includes -
1 x RB400 Irreversible electromechanical gear motor, with incorporated control unit and OXI plug-in receiver which can be used for connections via Nice BlueBUS
1 x ON2E transmitter 433.92 MHz, 2 channels
1 x EBMP pair of outdoor photocells, for connections via Nice BlueBUS network
1 x EKS key selector ERA series, for outdoor installation
1 x ELDC LED flashing light, 12-36 Vdc, for preset control units
The Somfy Rolly IO motorization is installed on gates measuring up to 6 meters and weighing up to 300 kg. It is completely hidden and integrated into the post and motorizes your gate in style. Watch video on Product FAQ section
Fully closed designs are available in frameless design for contemporary style homes. You may choose to use louvred slats if you need a fully closed gate in windy area.
At Slab we manufacture standard sliding gates that runs on track and rollers as well as telescopic, cantilever (free standing) and double leaf sliding gates.
Only flat top styles can be made in telescopic and double leaf and cantilever designs. Telescopic and double leaf sliding are best suited for small driveways. Cantilever gate are usually chosen if you have a slopped driveway. Roller and tracks are made of stainless steel as standard.
Our gates are manufactured with anti-lift mechanism for maximum safety and security.
Slab Sliding gates are available in flat top and curved top designs. Other models with dipped top or semi-circle top is not practically possible with sliding gates
Only flat top styles can be made in telescopic and double leaf and cantilever designs. Curved top sliding gates comes with standard rolling tracks.
Your request has been sent to our sales team. One of the member of our staff will deal with your request as soon as possible. Standard lead time is 1 - 2 working days for bespoke quote request.
You will be receiving an email with the drawings and quote as requested. Thank You!
Visualise your new gate and fence in the exact dimension and colour before you buy. Please contact us by email with the width, height, colour and gate/fence product name or model and we will send you the drawings. We try our best to process your request in 48 hours, sometimes it takes a bit longer than expected.
